hello!

[antrock101]

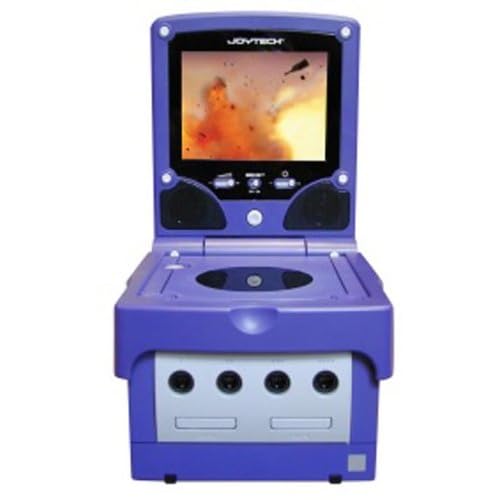

heya guys i just joined the forum. I've been searching it pretty much everyday for about 2 weeks when i went in my local cash converters and found a gamecube and logitech 5.6 screen with base. I plan on using the screen and base to hold a portable. Not power out the power yet still in need of a testing kit. But considering it ran off a 12v dc car batt i'm pretty certain i can get it down to around 9 volts to power both.
I just wanted to ask a few questions as my knowledge on electronics is a bit thin on the ground. I used to make combat robats but apart form that simple form i have not done anything as advanced.

1: with the gamecube screen it has a built in gc connector to the analog av out of the gc. is it possible to strip those wires and replace them with av to nes av out? like i said ive seen a few diagrams but understanding pins ect is not my specialty.

2: nes on a chip devices do they out put av?

3: is there a known UK supplier of noac devices?

4: what is usually the height and width of a original nes portal

cheers

[antrock101]

some board pics i stole of sdh hope you dont mind

just found out something interesting the connector for gamecube is the same as snes, are they compatible or is there voltage issues?

[sdh]

Haha, nice I've forgotten all about that screen. Do you have one just like that?
Sorry to say, but I won't be of any help as I don't remember anything about screens and whatnot.

[antrock101]

lol, not to worry. i think i can do it with the screen i just need a way of converting the gamecube/snes connector to an nes av outputs. i swear ive seen connection boxes in the past but not sure.

Just took my nes apart and the board fits in the housing, apart from the big power metal thing on the board and about 2 mm of that silver stuff around the edge of the board but im sure i can take that off like on the atari 2600 ? the project it can definitely be done. my major problems are the big metal thing on the board and the av connections atm.

thanks for letting me use your pics btw

*sorry for any errors in grammar im on my way out had to type up quick

[antrock101]

these are my dimensions, reckon a nes mb will fit with 1 inch height lol

[antrock101]

so many cheap super joys around is this the one im after http://www.amazon.co.uk/Super-Classic-A ... B001AW4OFO" onclick="window.open(this.href);return false;

[XCVG]

The screen is easy, the wires can be rewired easily. It's different for every screen so you'll have to figure it out yourself.

[antrock101]

im not particularly electronically minded when it comes to circuit bored ect do you know of any wire layouts for this product i cant seem to unearth the one i was looking at earlier

[antrock101]

sorry for more posts thought it best to keep it in here than spread out

http://stoneagegamer.com/index.asp?Page ... ProdID=621" onclick="window.open(this.href);return false;

http://stoneagegamer.com/index.asp?Page ... ProdID=365" onclick="window.open(this.href);return false;

im seriously considering those noac for my project. any info the internet is sparse. im in the Uk aswell so they need pal compatiblity ?

[XCVG]

sorry for more posts thought it best to keep it in here than spread out

http://stoneagegamer.com/index.asp?Page ... ProdID=621" onclick="window.open(this.href);return false;

http://stoneagegamer.com/index.asp?Page ... ProdID=365" onclick="window.open(this.href);return false;

im seriously considering those noac for my project. any info the internet is sparse. im in the Uk aswell so they need pal compatiblity ?

Either one is okay, better than the one you posted earlier, but neither has built-in games. They are not PAL, so you better have an NTSC-capable screen.

[antrock101]

my screens capable of 50 and 60 hz
are pal and ntsc carts diffrent?

[antrock101]

sdh check your pm's

[XCVG]

my screens capable of 50 and 60 hz

Okay, but can it do NTSC 60Hz and PAL 50Hz, or just PAL 50Hz and PAL 60Hz?

are pal and ntsc carts diffrent?

As far as I know, no. The lockout chip is different but that doesn't matter with a NOAC or a modded NES. Make sure you get a NOAC with a "USA", "NES" or "72-pin" cart slot. You DO NOT want a "Japanese", "Famicom" or "60-pin" slot.

[antrock101]

thats a really good thought. I'll get back to you

[antrock101]

Not compatible with NTSC GameCubes (from the US or Japan) - PAL machines (from the UK, Europe or Australia) only
